Fire Pump/Engine Pump
DEP Series
Integrated (engine pump + pressure pump + fire tank)
Dae-A engine pump is a pump system designed to extinguish fire in the shortest time through the automation system of the engine pump in the event of a fire. Dae-A engine pump is an automatic fire pump system that complies with the standards of KFSL (domestic fire code) as well as NFPA 20 (International Fire Protection Association).Dae-A engine pump is designed as a compact type, making it easier to install and operate than motor pumps, and reducing facility costs.Dae-A engine pump can be used without changing the model even when the flow rate increases at a certain level by adjusting the RPM.

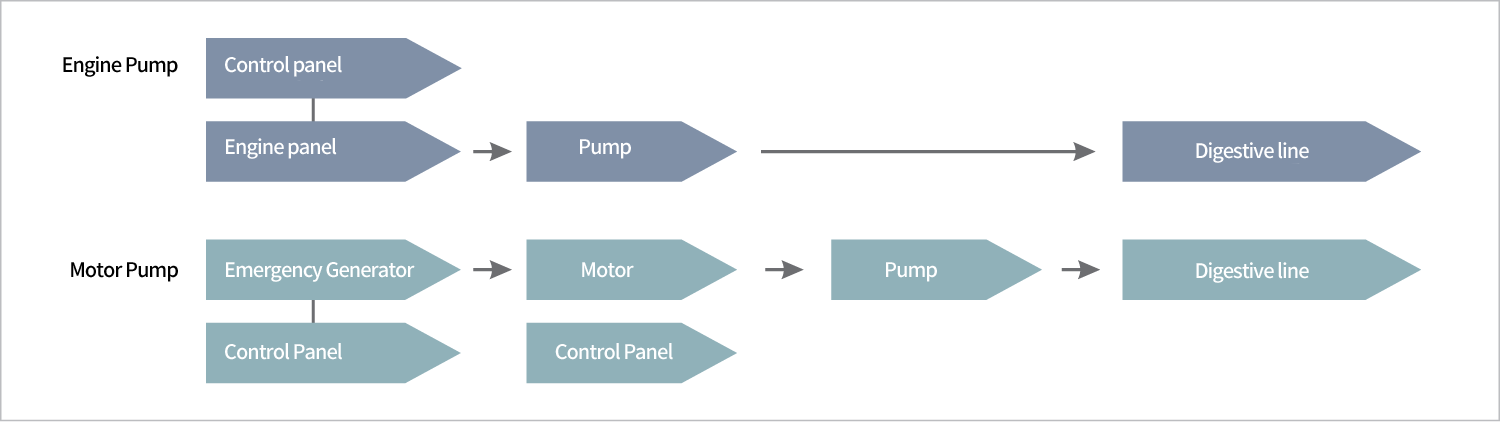

Composition
Applications and Uses
- For emergency fire extinguishers and sprinklers
- For emergency water supply
- For emergency ships
- For emergency fish farms
Characteristic
- System that only requires connecting the surrounding pipes
- Easy to utilize space
- Reduced installation costs
- Automatic functions possible
- Easy to transport as an all-in-one unit

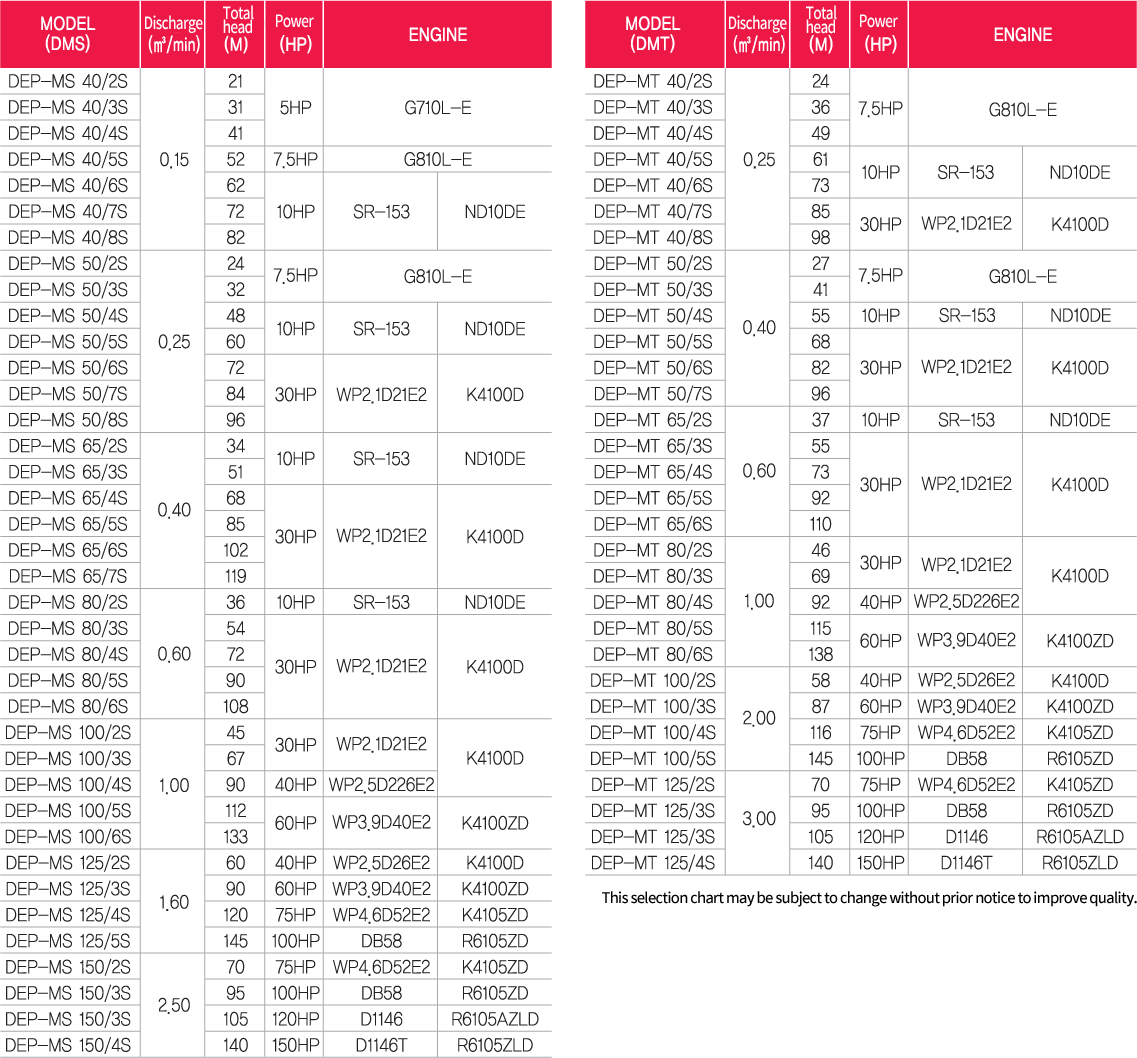

Engine pump selection diagram
